Semi Automatic Lug Capping

Semi Automatic Lug Capping

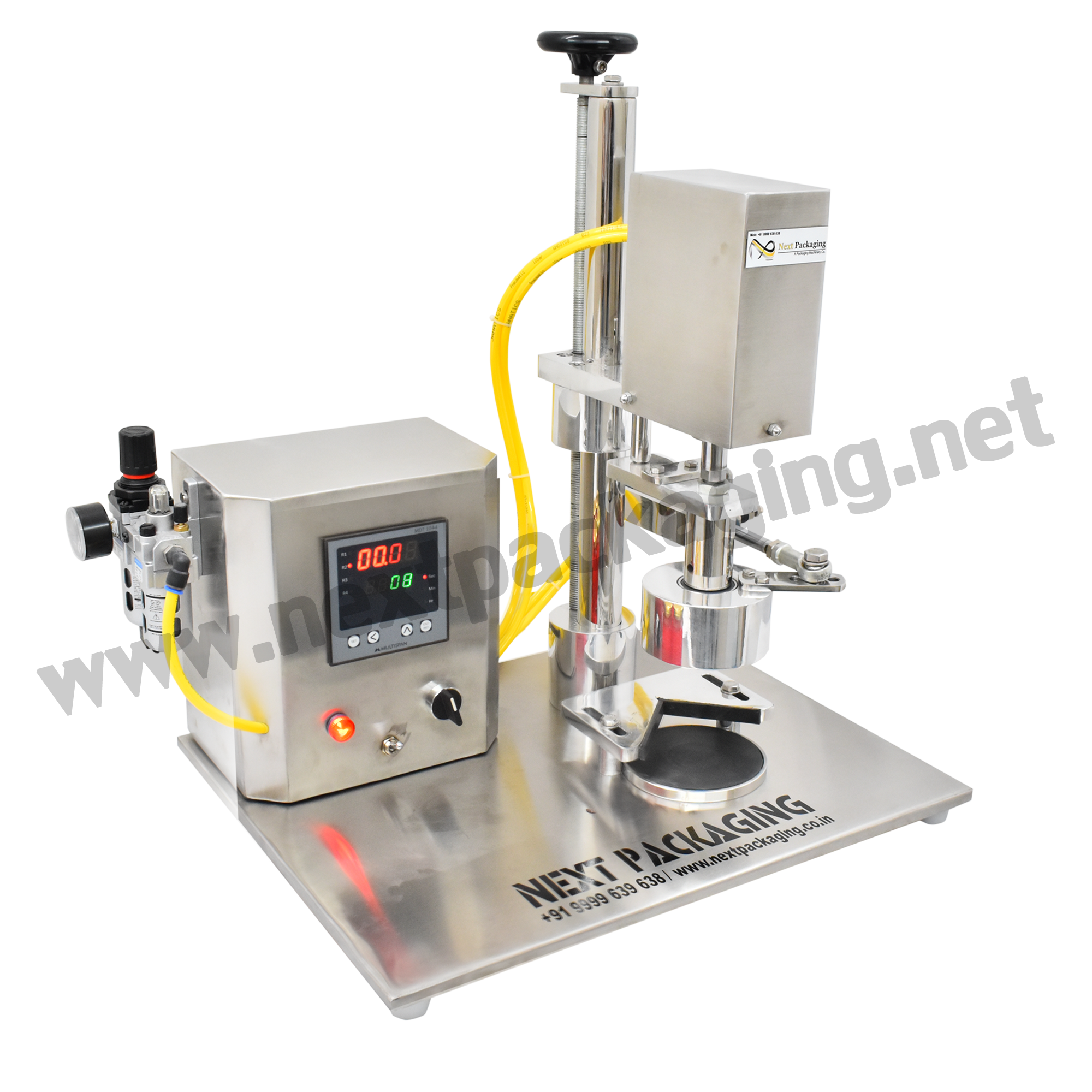

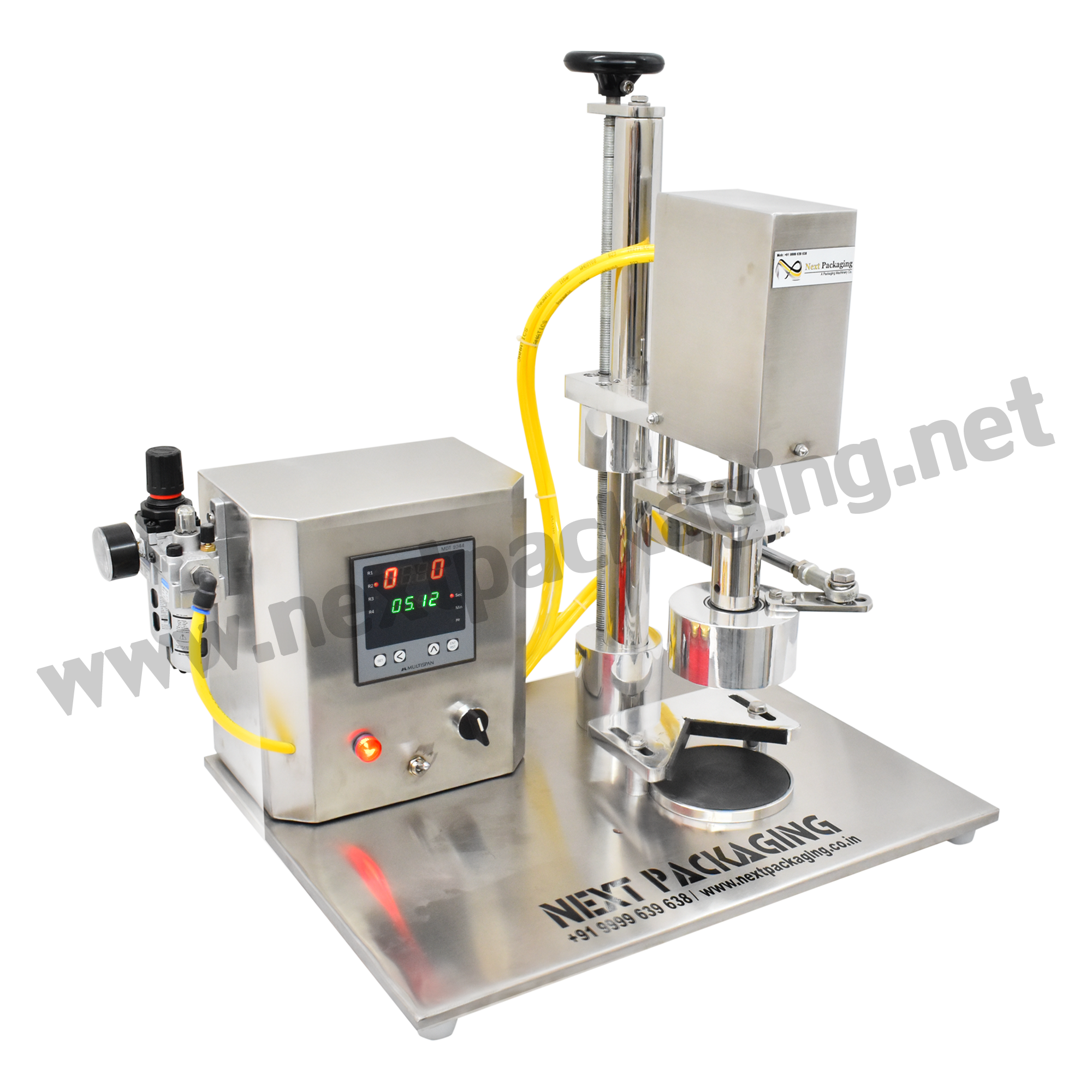

The pneumatically operated twist off capper table model gives perfect sealing depending upon the quality of jars and lids.
Our semi-automatic lug capping model has been designed with premium materials and advanced technology. Offered at a competitive price, this model is suitable for early-age start-ups, medium and small scale industries.

Working:
The user has to manually place the cap onto the glass jar. Then, it is to be taken below the machine capping head. Making the capping head down, the top cylinder presses the cap on the glass jar, while the horizontal cylinder grips the jar for better stability during capping. According to the pre-decided capping length, the capping cylinder rotates the cap.

Once the jar gets capped, all cylinders move to their prior or start position enabling the operator to remove the capped jar and feed new one.

Benefits:

Capable of vacuum capping of the bottles
Works in auto model, so it gives fast operation
Better Accuracy
Adjustable Capping Length
Easy Changeover
Synchronized Operations

Technical Specifications :

Model No. NEXT-PLC-39
Machine Type Semi Automatic 3 Cylinder Model
MOC Stainless Steel
Cap Size Diameter 40-140mm Customizable
Speed 4-6 BPM
Works For Lug Caps
