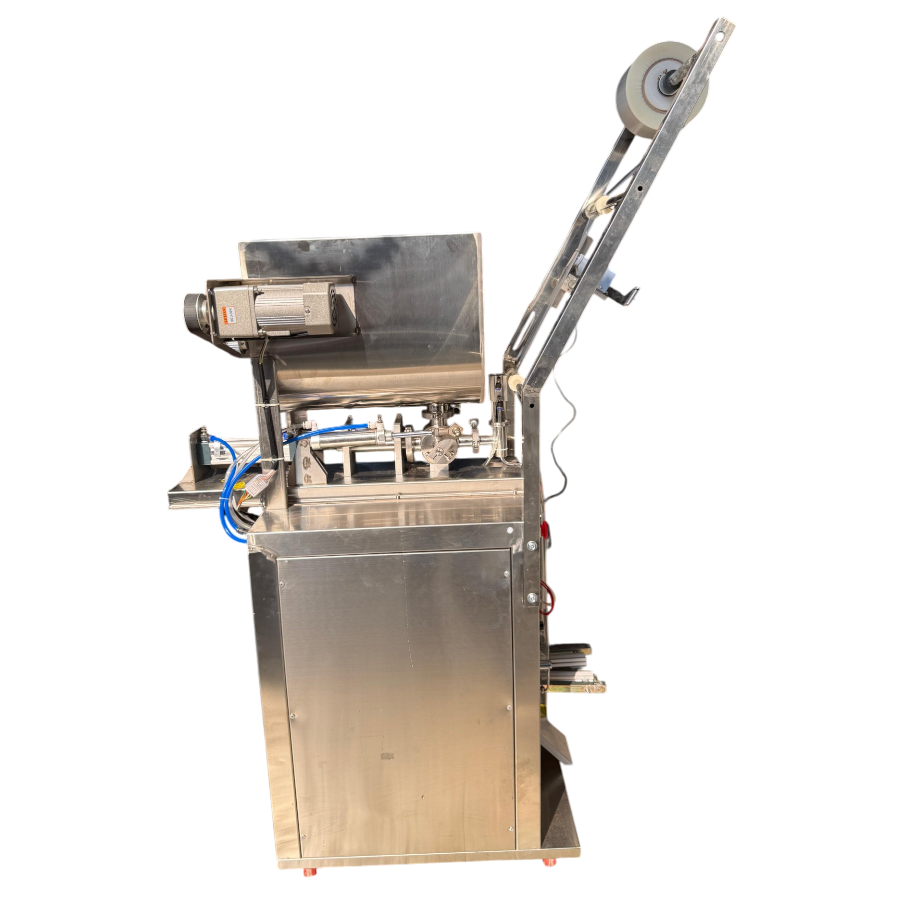

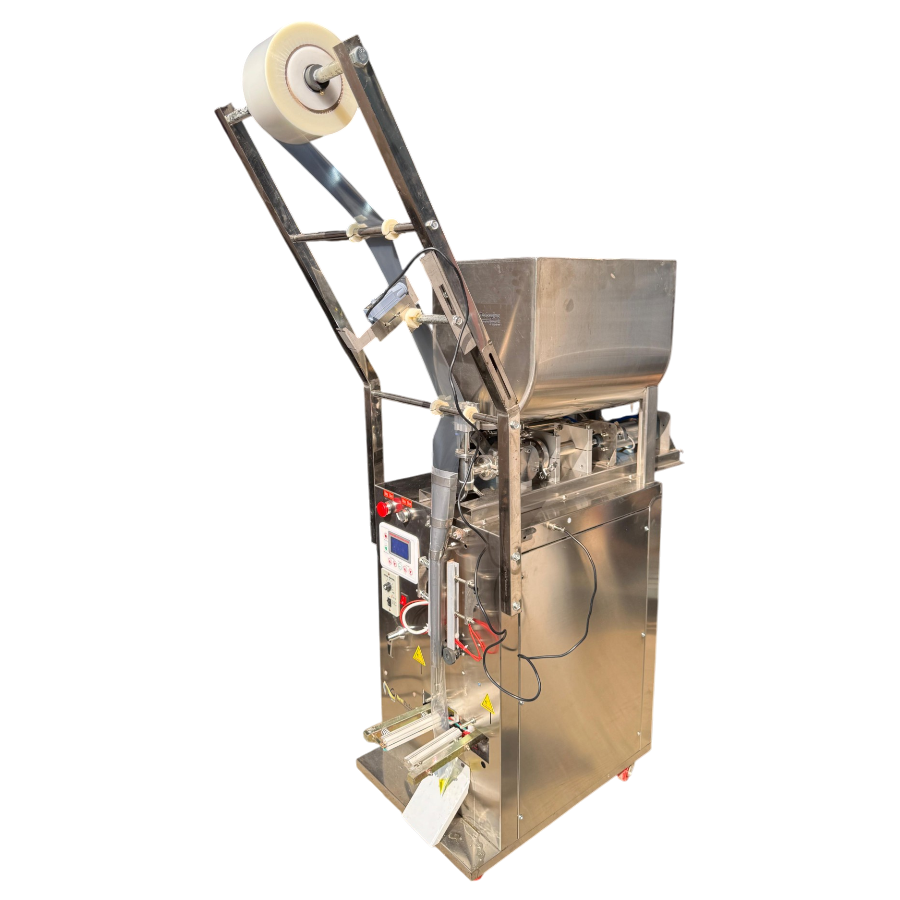

FFS Machine With Paste Filling System
FFS Machine With Paste Filling System
Next Packaging Machinery's FFS Machine With Paste Filling System is a packaging equipment designed for forming pouches, filling the pouches with the paste like Cream, ointments, scrubs, murraba, gel, etc. Our machine is automatic one step solution for your product, you can mount a printed roll with your branding and a batch coder can be mounted along side for MRP, Date, Lot number, etc., fill your product and then seal the pouch and your product is ready for market use. You can pair this Machine with our secondary packaging range for final transport ready packaging. Widely used in Food, Pharmaceutical, Cosmetics industries.
Forming System: The Bag former (Chute) shapes the roll and Vertical Heater System ensure sealing in vertical form making a pipe like structure.
Filling System: The Paste filler which is pneumatic Piston based ensures accurate and efficient filling of the Product.
Sealing System: After your product is filled the Horizontal Sealing System Seal Horizontally and cuts the Pipe Like Structure making a Pouch.
Benefits:
Technical Specifications :
Model No. | NEXT-FFSPF-151 |
MOC | Stainless Steel |
Packing Range | 5-100G, 30-250G (Different Model) |
Accuracy | +/- 1% |
Speed | 15-20 Pcs/min |
Applicator Motor | Stepper Motor |
Max Width | Bags 120mm |
